产品特点：上辊万能式卷板机属于液压型三辊卷板机，用于常温状态下将板材卷成圆筒形、圆弧形、圆锥形。上辊可以垂直移动、水平移动。...
全国免费服务热线：180-6895-499960秒优酷云精准服务 30min枝术信访回复 24小时内高解决方案设计

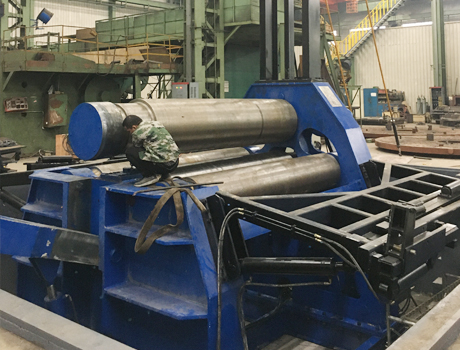

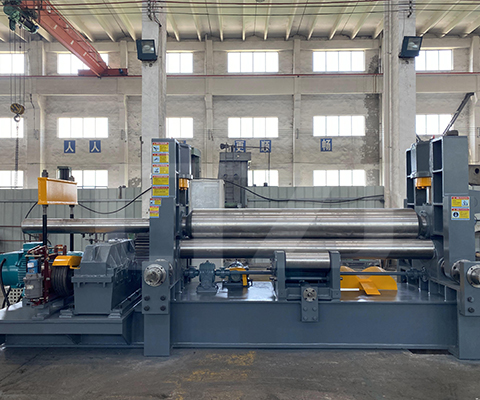

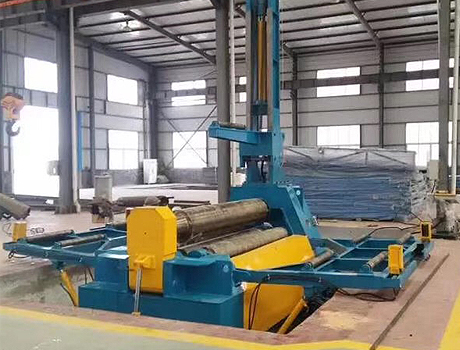

现场案例
规格型号 形号 | 卷板机的薄厚 (mm) | 卷板长宽比 (mm) | 上辊直经 (mm) | 电机的瓦数 (kw) | 样貌尺码 (mm) |
| CTW11S-6X1500 | 1-6 | 1500 | 160 | 4 | 3200x1050x1250 |
| CTW11S-6X2000 | 1-6 | 2000 | 170 | 4 | 3700x1050x1250 |
| CTW11S-8X2000 | 1-8 | 2000 | 200 | 5.5 | 3800x1100x1300 |
| CTW11S-12X2000 | 1-12 | 2000 | 250 | 7.5 | 3900x1450x1400 |
| CTW11S-12X2500 | 2-12 | 2500 | 270 | 11 | 4500x1500x1450 |
| CTW11S-12X4000 | 2-12 | 4000 | 340 | 15 | 6700x1500x1900 |
| CTW11S-16X2500 | 2-12 | 2500 | 300 | 11 | 4500x1500x1750 |
| CTW11S-20X2500 | 3-20 | 2500 | 340 | 15 | 5000x1700x1900 |
| CTW11S-25X2000 | 3-25 | 2500 | 380 | 22 | 5100x1950x2220 |
| CTW11S-30X2500 | 5-30 | 2500 | 420 | 30 | 5200x2400x2500 |
| CTW11S-40X2500 | 6-40 | 2500 | 520 | 37 | 6000x2700x2900 |
| CTW11S-40X3200 | 6-40 | 3200 | 550 | 45 | 7800x2900x3200 |
| CTW11S-50X2500 | 8-50 | 2500 | 580 | 55 | 6500x3100x3300 |
| CTW11S-50X3200 | 8-50 | 3200 | 620 | 55 | 7000x3200x3500 |
| CTW11S-60X3200 | 10-60 | 3200 | 660 | 75 | 6700x3500x3900 |
| CTW11S-70X3200 | 10-70 | 3200 | 720 | 75 | 7000x3800x4300 |
| CTW11S-80X3200 | 16-80 | 3200 | 780 | 90 | 7200x4000x4700 |
| CTW11S-90X32001 | 20-90 | 3200 | 820 | 90 | 7300x4100x5000 |
| CTW11S-100X3200 | 20-100 | 3200 | 860 | 110 | 7500x4200x4900 |
| CTW11S-120X3200 | 25-120 | 3200 | 930 | 2x63 | 7800x4400x5800 |
| CTW11S-120X4000 | 30-120 | 4000 | 980 | 2x75 | 8600x4600x6300 |
| CTW11S-130X3200 | 30-130 | 3200 | 980 | 2x75 | 7800x4600x6300 |
| CTW11S-150X3200 | 30-150 | 3200 | 1120 | 2x90 | 7800x5500x6800 |
| CTW11S-160X3500 | 40-160 | 3500 | 1200 | 2x90 | 8500x5760x7100 |
