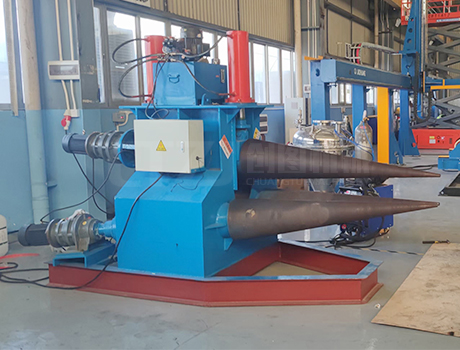

产品特点：对称锥形卷板机上棒在两辊子中心对称位置，由液压油缸作用于活塞作垂直升降运动，并由主减速器的末级齿轮带动两滚轮齿轮啮合而作旋转运动，为卷制板提供力矩。...
全国免费服务热线：180-6895-499960秒手机在线客服于 四十分钟的英文技木回应 24天技艺计划书
产品特点

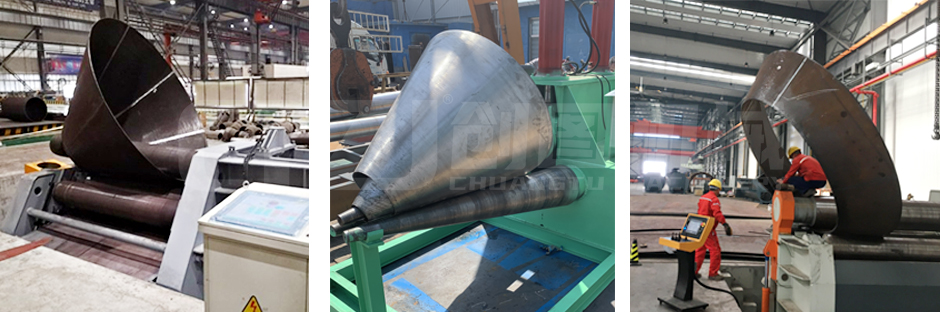

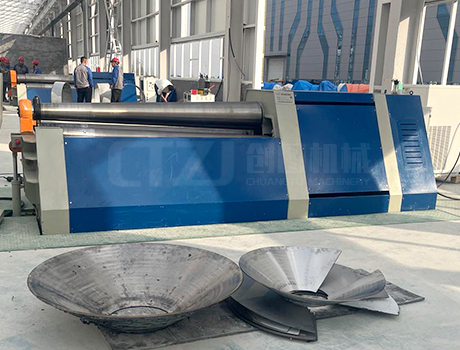

扇形筒卷板飞机上辊可app机诫或液压机改善,快速可用于特地卷制扇形成品设备,制造不透钢扇形筒、不锈钢程度头卷制,小内直径扇形钢丝绳卷筒,简洁、简单方便,快捷方便。可按照其可户型图号私人定制成品设备类型。机械装备广泛的app于导致精度让高,如:航空运输、核电厂等合金金属架钢结构材料构件制造业及化工新材料机诫、海洋环境油田公司、输油管线气给水管道等相关行业。现场案例
尺寸 尺寸 | 卷板板厚 (mm) | 卷板间距 (mm) | 上辊直徑 (mm) | 同步电机耗油率 (kw) | 外形尺寸 (mm) |
| CTW12-4X1500 | 1-4 | 1500 | 140 | 3 | 2800x800x1000 |
| CTW12-4X2000 | 1-4 | 2000 | 160 | 4 | 3400x900x1000 |
| CTW12-6X2000 | 1-6 | 2000 | 170 | 4 | 3600x1100x1100 |
| CTW12-6X2500 | 1-6 | 2500 | 190 | 5.5 | 4000x1200x1200 |
| CTW12-8X2500 | 2-8 | 2500 | 220 | 7.5 | 4700x1500x1500 |
| CTW12-12X2000 | 3-12 | 2000 | 240 | 7.5 | 4200x1500x1500 |
| CTW12-12X2500 | 3-12 | 2500 | 260 | 11 | 4800x1600x1600 |
| CTW12-16X2500 | 3-16 | 2500 | 280 | 11 | 5000x1700x1700 |
| CTW12-16X4000 | 4-16 | 4000 | 370 | 22 | 6600x1700x1700 |
| CTW12-20X2500 | 3-20 | 2500 | 340 | 15 | 5000x1900x1880 |
| CTW12-20X3200 | 4-20 | 3200 | 380 | 18.5 | 4600x2200x2200 |
| CTW12-25X2000 | 3-25 | 2000 | 340 | 15 | 4600x1900x1900 |
| CTW12-25X2500 | 4-25 | 2500 | 380 | 18.5 | 5100x2200x2200 |
| CTW12-25X3200 | 5-25 | 3200 | 420 | 22 | 6600x2550x2500 |
| CTW12-30X2500 | 5-30 | 2500 | 420 | 22 | 6000x2800x2900 |
| CTW12-30X3200 | 5-30 | 3200 | 450 | 30 | 6800x2900x2900 |
| CTW12-40X2500 | 6-40 | 2500 | 520 | 37 | 6500x3000x3000 |
| CTW12-40X3200 | 6-40 | 3200 | 550 | 2x22 | 7100x3000x3000 |
| CTW12-50X2500 | 8-50 | 2500 | 580 | 2x22 | 6500x3000x3000 |
| CTW12-50X3200 | 8-50 | 3200 | 620 | 2x30 | 7100x3000x3000 |
| CTW12-60X3200 | 10-60 | 3200 | 660 | 2x37 | 7200x3300x3500 |
| CTW12-80X3200 | 16-80 | 3200 | 800 | 2x45 | 7500x3500x3800 |
| CTW12-100X3200 | 20-100 | 3200 | 860 | 2x55 | 8100x3800x3800 |
| CTW12-120X3200 | 20-120 | 3200 | 920 | 2x63 | 8200x4000x4000 |
| CTW12-150X3200 | 25-140 | 3200 | 1080 | 2x75 | 8600x5000x5000 |
| CTW12-160X3200 | 30-160 | 3200 | 1160 | 2x75 | 8600x5200x5200 |
| CTW12-180X3200 | 30-180 | 3200 | 1220 | 2x90 | 8800x6000x5800 |
